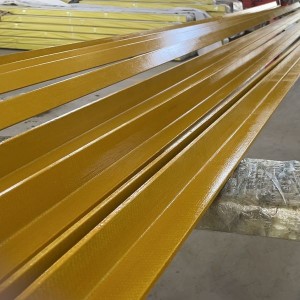

• Pultruded Fiberglass Angle High in Strength

Pultruded Fiberglass Angle High in Strength

Sinogrates@FRP pultruded L profiles is a 90° structural profiles. FRP pultruded L profile is widely used in a  walkways,platforms,building constructions,and etc. It is the best choice to substitute steel and aluminum products in the corrosion -resistant environments. As well as installed on the edge of the mud ditch groove. meanwhile, FRP pultruded Y profile can replace steel as embedded corners in the soil. We have a variety of sizes for your choices, which could be suitable for other structural par.

Sinogrates@enough sizes of Fiberglass Angle to satisfy your requirements of structural matching ts.

For more information, click on the product data tab above.

Product Detail

Product Tags

Pultruded Fiberglass Angle High in Strength
Pultruded Fiberglass Angle High in Strength
A2

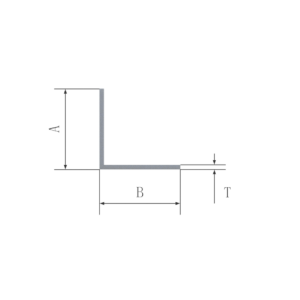

Fiberglass Angle Moulds Types:

 Serial Items AXBXT(mm) Weight g/m Serial Items  AXBXT(mm) Weight g/m
1 25X25X3.0 490 15 60x60x7.5 3000
2 30X30X3.0 600 16 63x63x3.5 1540
3 38X38X3.0 735 17 63x63x4.0 1790
4 38X38X3.5 920  18 76x76x5.0 2650
5 38X38X4.0 1030 19 76x76x6.35 3360
6 38X38X7.0 1680 20 100x100x3.5 2560
7 40X40X5.0 821 21  100x100x4.5  3260
8 50X50X4.0 1285 22 100x100x6.0 4280
9 50X50X5.0 1670 23 100x100x6.4 4550
10 50X50X6.0 1950 24 100X100X8.0 5600
11 50X50X6.3 2060 25 102X102X4.0 2980
12 50X50X8.0 2486 26 102X102X5.5 4030
13 60X60X5.0 1980 27 110X110X8.0 6200
14 60X60X6.0 2460
Y Types 25X38X6.4 1084
Y Types 38X38X6.4 1163
Y Types 38X50X6.4 1380
Y Types 50X50X6.4 1530
Pultruded Fiberglass Angle High in Strength

Sinogrates@GFRP PULTRUSION:

Light

•Insulation

•Chemical resistance

•Fire retardant

•Anti-slip surfaces

•Convenient for installation

•Low maintenance cost

•UV protection

•Dual strength



Are you looking for a strong, lightweight, and ever-lasting material to supersede wood, steel, or aluminum? Look no further than Pultruded FRP Angle. We stock one of the industry’s most comprehensive lines of FRP profiles, which offer the strength of traditional building materials with a longer life cycle.

Our fiberglass reinforced structural profiles are resistant to rot, rust, and corrosion, and remain dimensionally stable in hot or cold, wet or dry conditions. Plus, they are easy and quick to install, as they can be cut, drilled, and assembled using standard tools.

Pultruded FRP Angle is popularly used in a wide range of applications, including cross bracing, clip angles, short column fabrication, concrete embedment, display racks, overhead pipe supports, and under bridge/pier pipe supports.

Whether you’re building a structure or replacing existing materials, Pultruded FRP Angle is the perfect choice for a strong, lightweight, and long-lasting material.



FRP/GRP Pultruded Fiberglass Channels Corrosion & Chemical Resistant
Pultruded Fiberglass Angle High in Strength

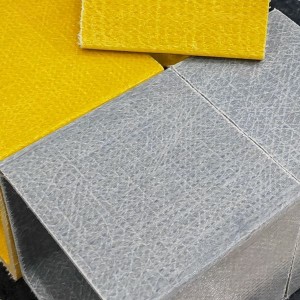

FRP Pultruded profiles Surfaces Opinions:

Depending on the sizes of FRP products and different environments, choosing different surface mats can achieve  maximum performance to save costs to a certain extent.



Continuous Synthetic Surfacing Veils:

Continuous Synthetic Surfacing Veils is a commonly used pultruded profiles surface. The continuous composite surface felt is a silk fabric synthesized by continuous felt and surface felt. It can ensure the strength while making the surface more gloss and delicate. When touching the product, the person's hands will not be stabbed by glass fiber. The price of this profile is relatively high. Generally, it is used in places where people are touched by handrane fences, ladder climbing, toolproofs, and park landscapes. A considerable proportion of anti -ultraviolet reagents will be added during the production process. It can ensure that it does not fade for a long time and has good anti -aging performance.











Continuous strand mats:

Continuous strand mats is the surfaces commonly used in large pultruded profiles. Continuous strand mat has a high intensity and strength advantage. It is generally used in large structural pillars and beams. The surfaces of the Continuous strand mat is relatively rough. It is generally used in industrial supporting part to replace steel and aluminum at the venue of corrosion resistance. The use of practical large -scale profiles is used in the structures that people do not often touch. This kind of profile has good costs performance. It is suitable for large -scale applications in engineering. It can effectively reduce the cost of use and ensure the performance of the product.













Continuous compound strand mats:

Continuous compound strand mat is a fiberglass fabric waving composed of surfacing veils and continuous strand mats,which has excellent strength and nice appearance. It can effectively help to reduce the costs . It is the most economical choices if high-intensity and appearance requirements. It can also be applied to the handrail protection engineering. It can effectively exert the strength advantage and have people's hand touching protection.















Wood Grain Continuous Synthetic Surfacing Veils:

Wood Grain Continuous Synthetic Surfacing Veils is one kind of fiberglass fabric waving
It has excellent strength performance which is similar to wood products. It is a substitute for wood products such as landscapes, fences, villa fences, villa fences, etc. The product is similar to the appearance of wood products and is not easy to rot, not easy to fade, and low maintenance costs in the later period. There is a longer life life in the seaside or long -term sunlight.

Synthetic Surfacing Veil

FRP/GRP Fiberglass pultruded Rectangular Bar

Continuous Strand Mat

FRP/GRP Fiberglass pultruded Rectangular Bar

Continuous Strand Mat & Surface felt

FRP/GRP Fiberglass pultruded Rectangular Bar

Wood Grain Continuous Synthetic Surfacing Veils

FRP/GRP High strength Fiberglass pultruded I-Beams

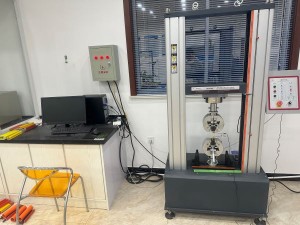

Products capacities test laboratory:

The meticulous experimental equipment for FRP pultruded profiles and FRP molded gratings ,such as flexural tests,tensile tests,compression tests, and destructive tests. According to customers’ requirements,we will conduct performances & capacities tests on FRP products ,keeping the records to guarantee the quality stability for long-term.meanwhile, We are always researching & developing innovative products with testing the reliability of FRP product performance. We can ensure that the quality can satisfy customers’ requirements stably to avoid unnecessary after-sales problems.

FRP Pultruded Grating Fire Retardant/Chemical Resistant
FRP Pultruded Grating Fire Retardant/Chemical Resistant
FRP Pultruded Grating Fire Retardant/Chemical Resistant

FRP Resins Systems Choices:

Phenolic resin (Type P): The best choice for applications requiring max fire retardant and low smoke emissions such as oil refineries, steel factories, and pier decks.
Vinyl Ester (Type V): withstand the strict chemical environments used for chemical, waste treatment, and foundry plants.
Isophthalic resin (Type I): A nice choice for applications where chemical splashes and spills are a common occurrence.
Food Grade Isophthalic resin (Type F): Ideally suitable for food and beverage industry factories which are exposed to strict clean environments.
General Purpose Orthothphalic resin (Type O): economic alternatives to vinyl ester and isophthalic resins products.

Epoxy Resin(Type E):offer very high mechanical properties and fatigue resistance, taking the advantages of other resins. Mold costs are similar to PE and VE, but material costs are higher.

FRP Pultruded Grating Fire Retardant/Chemical Resistant

Resins options guide:

Resin Type Resin Option Properties Chemmical Resistance Fire Retardant(ASTM E84) Products Bespoke Colors Max ℃ Temp
Type P Phenolic Low Smoke and Superior Fire Resistance Very Good Class 1, 5 or less Molded and Pultruded Bespoke Colors 150℃
Type V Vinyl Ester Superior Corrosion Resistance and Fire Retardant Excellent Class 1, 25 or less Molded and Pultruded Bespoke Colors 95℃
Type I Isophthalic polyester Industrial Grade Corrosion Resistance and Fire Retardant Very Good Class 1, 25 or less Molded and Pultruded Bespoke Colors 85℃
Type O Ortho Moderate Corrosion Resistance and Fire Retardant Normal Class 1, 25 or less Molded and Pultruded Bespoke Colors 85℃
Type F Isophthalic polyester Food Grade Corrosion Resistance and Fire Retardant Very Good Class 2, 75 or less Molded Brown 85℃
Type E Epoxy Excellent corrosion resistance and fire retardant Excellent Class 1, 25 or less Pultruded Bespoke Colors 180℃

According to the different environments and applications, chosen different resins, we also could provide some advices!



According to the applications, handrails can be used in various environments:

 •Cooling Towers                 •Architecture Solutions            •Highway Signs

•Utility Markers                  •Snow Markers                         •Marine/Offshore

•Hand Rails                        •Stairs & Accessways              •Oil & Gas

•Chemical                          •Pulp & Paper                          •Mining

•Telecommunications         •Agriculture                              •Hand Tools

•Electrical                           •Water & Wastewater              •Custom Applications

•Transportation/Automotive

•Recreation & Waterparks

•Commerical/Residential Construction

FRP/GRP Fiberglass pultruded Rectangular Bar
FRP/GRP Fiberglass pultruded Rectangular Bar
FRP/GRP Fiberglass pultruded Rectangular Bar

Parts of FRP pultruded profiles exhbitions :

Pultruded Fiberglass Angle High in Strength
FRP/GRP Fiberglass pultruded Rectangular Bar
FRP/GRP Fiberglass pultruded Rectangular Bar
FRP/GRP Fiberglass pultruded Rectangular Bar
FRP/GRP Fiberglass pultruded Rectangular Bar
Pultruded Fiberglass Angle High in Strength
Pultruded Fiberglass Angle High in Strength
FRP/GRP Fiberglass pultruded Rectangular Bar
FRP/GRP Fiberglass pultruded Rectangular Bar
FRP/GRP Fiberglass pultruded Rectangular Bar
FRP/GRP Fiberglass pultruded Rectangular Bar
FRP/GRP Fiberglass pultruded Rectangular Bar
Pultruded Fiberglass Angle High in Strength
FRP/GRP High strength Fiberglass pultruded I-Beams
FRP/GRP Fiberglass pultruded Rectangular Bar
FRP/GRP Fiberglass pultruded Rectangular Bar
FRP/GRP Fiberglass pultruded Rectangular Bar
FRP/GRP Fiberglass pultruded Rectangular Bar
FRP/GRP Fiberglass pultruded Rectangular Bar
Pultruded Fiberglass Angle High in Strength
Pultruded Fiberglass Angle High in Strength
